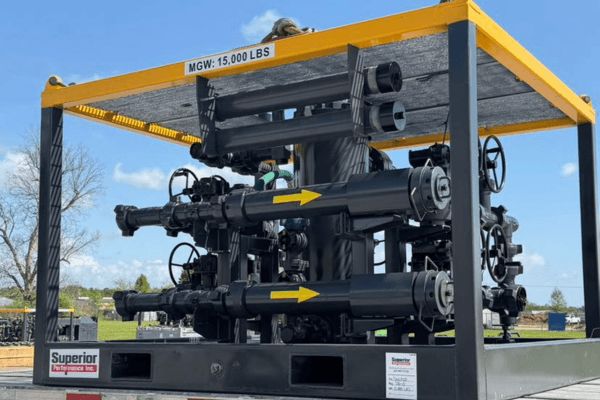

SPI Power Cyclone
Superior Performance Tools
The SPI Power Cyclone removes sand, scale, and mill cuttings from completion and workover fluids at pressures up to 15,000 PSI.
Engineered for High-Pressure Debris Management
Every feature of the SPI Power Cyclone is engineered to protect downhole equipment and keep completion operations running without interruption, backed by patent-pending hydrocyclone technology.
Patented Hydrocyclone Technology
Advanced centrifugal separation for superior debris removal
Dual-Side Filtration
continuous flow during filter changeouts and maintenance
Expanded Debris Chamber
77.40 lb capacity for faster wellbore cleanouts and fewer surface cleanout stops
Double Isolation Valves
Enable maintenance and filter changeouts without shutting down circulation
Digital Pressure Monitoring
Real-time gauges with reduced personnel exposure to the unit
1502 WECO Connections
Industry-standard high pressure iron for fast rig-up and in-line bypass
.png?width=600&height=400&name=An%20oilfield%20worker%20wearing%20a%20hard%20hat%2c%20blue%20fire%20retardant%20shirt%2c%20and%20yellow%20vest%20using%20tools%20to%20to%20fix%20power%20equipment%20at%20Superior%20Performance%20shop%20headquarters%20(1).png)
Why Debris Filtration Matters During Completions
Unfiltered debris in completion and workover fluids is one of the most preventable (and most expensive) causes of downhole tool failure. Sand and scale can plug gravel-pack screens, damage sensitive completion hardware, and compromise formation productivity. In deepwater and high-day-rate operations, a single debris-related intervention can run into hundreds of thousands of dollars in lost rig time.
Catching solids at the surface before they reach the wellbore is the most cost-effective insurance an operator can add to a completion, protecting downhole investment and keeping the job on schedule.
Protecting Downhole Tools Starts With Clean Completion Fluids
Debris in circulating fluid causes downhole tool failure, formation damage, and preventable safety incidents, all of which drive up the cost of a completion.
Superior's SPI Power Cyclone catches sand, scale, and mill cuttings at the surface using patented hydrocyclone technology, keeping fluids clean, tools protected, and operations on schedule.
-
How does hydrocyclone technology remove debris from completion fluids?
A hydrocyclone uses centrifugal force to separate solids from liquid without any moving parts. Fluid enters tangentially at high pressure, which drives it into a tight spiral inside a cone-shaped chamber. Heavier particles are forced outward to the chamber wall and fall into a debris collection area, while the cleaner fluid exits through a central overflow port.
This design allows continuous, high-volume filtration at pressures and flow rates that conventional cartridge filters cannot match.
-
How does debris filtration reduce completion operation costs?
Unfiltered debris is one of the most common causes of downhole tool failure, plugged screens, and formation damage during completions — each of which can drive intervention costs into the hundreds of thousands of dollars per incident. Catching sand, scale, and mill cuttings at surface prevents the need for costly fishing runs, redo jobs, and remediation.
For deepwater operations where day rates are especially high, a single prevented downtime event typically covers the rental cost of the filtration unit many times over.
-
Where is the SPI Power Cyclone installed in the rig-up?
The SPI Power Cyclone is installed at surface, downstream of the rig's triplex pumps and upstream of the standpipe, so fluid is filtered on its way to the wellbore. The 1502 WECO inlet and outlet connections allow it to tie directly into existing high-pressure iron without specialized adapters.
The unit can be bypassed in-line for sand control pumping, viscous sweeps, or any operation where filtration is not needed — no rig-down required.
-
Can the SPI Power Cyclone be used with all completion fluid types?
Yes. The SPI Power Cyclone is compatible with water-based completion brines (CaCl₂, CaBr₂, ZnBr₂, KCl, NaCl), oil-based and synthetic-based drilling and workover fluids, and viscous sweeps. Because hydrocyclone separation relies on density differences between fluid and solids rather than fluid chemistry, performance is unaffected by salinity, pH, or additive packages.
For extremely high-viscosity applications, the unit can also be bypassed without interrupting circulation.
Rental and Field Service Support
At Superior Performance, the SPI Power Cyclone is available through our rental tool program with full field service support, including on-site rig-up, operator supervision, and post-job equipment recertification.
At the rig site, our technicians handle debris chamber cleanout, screen inspection, and bypass management, keeping the unit operational across multi-stage completions and extended workover programs, so the operator's crew can stay focused on core rig activities.
Service and Product Catalog
Get insights into our services and products by downloading our catalog, ensuring that you have access to the tools and resources needed to optimize your next project.
Partner with Superior Performance Today
Our team provides the equipment, technical specifications, and field support you need to spec the Power Cyclone into your next project. Contact us today for rental availability, data sheets, or a project consultation.
