SPI HPDU Power Series - Power X
& Power XC

Superior Performance



SPI HPDU Power Series – Power X & Power XC

Superior Performance’s HPDU Power Series offers a robust line of high-pressure debris filtration units designed to protect your wellbore, maximize equipment life, and reduce costly downtime.

Whether you’re operating in tight spaces or high-flow, high-pressure environments, the Power X and Power XC deliver continuous filtration and unmatched operational reliability during completions and workovers.

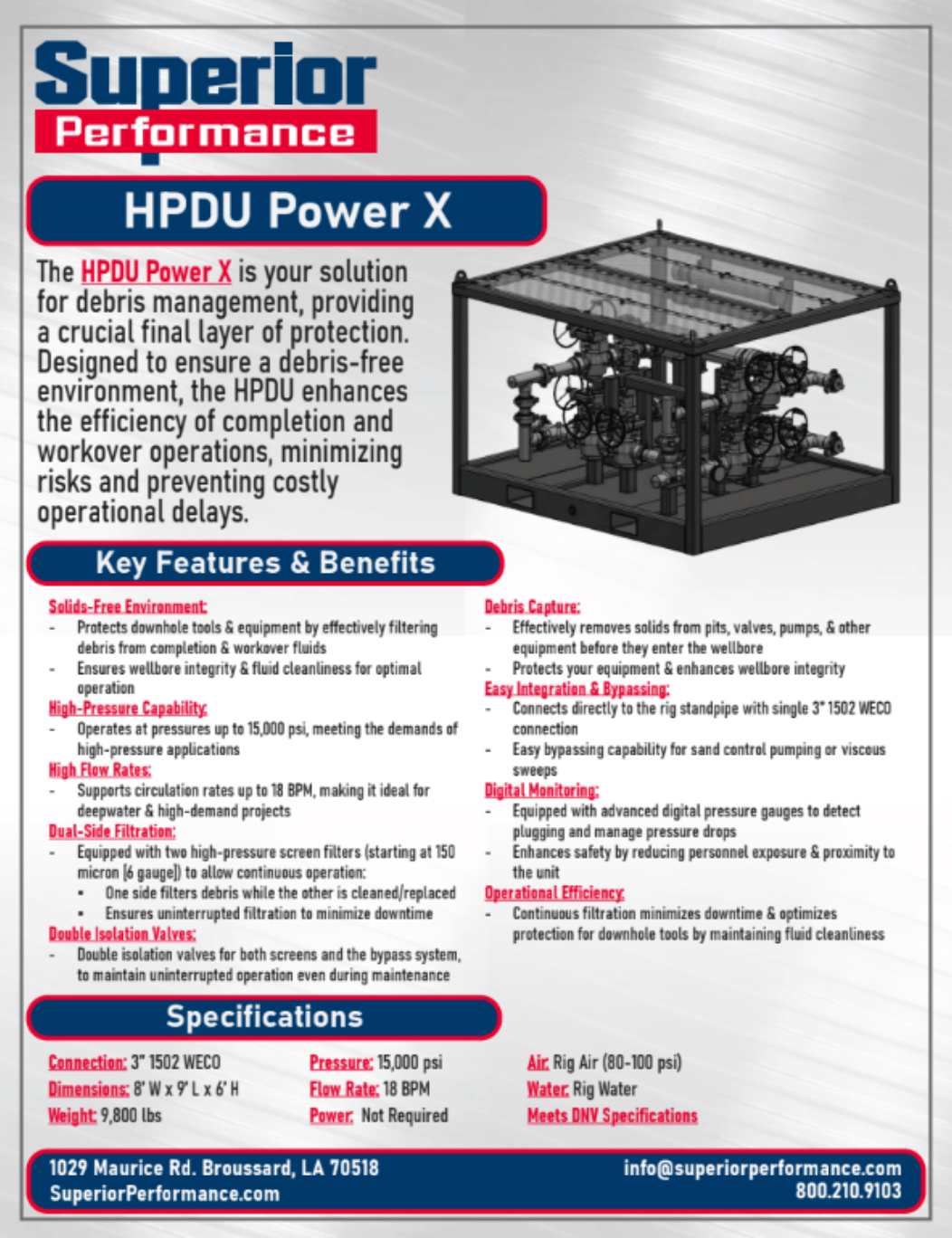

Downlod Now - Power X Brochure

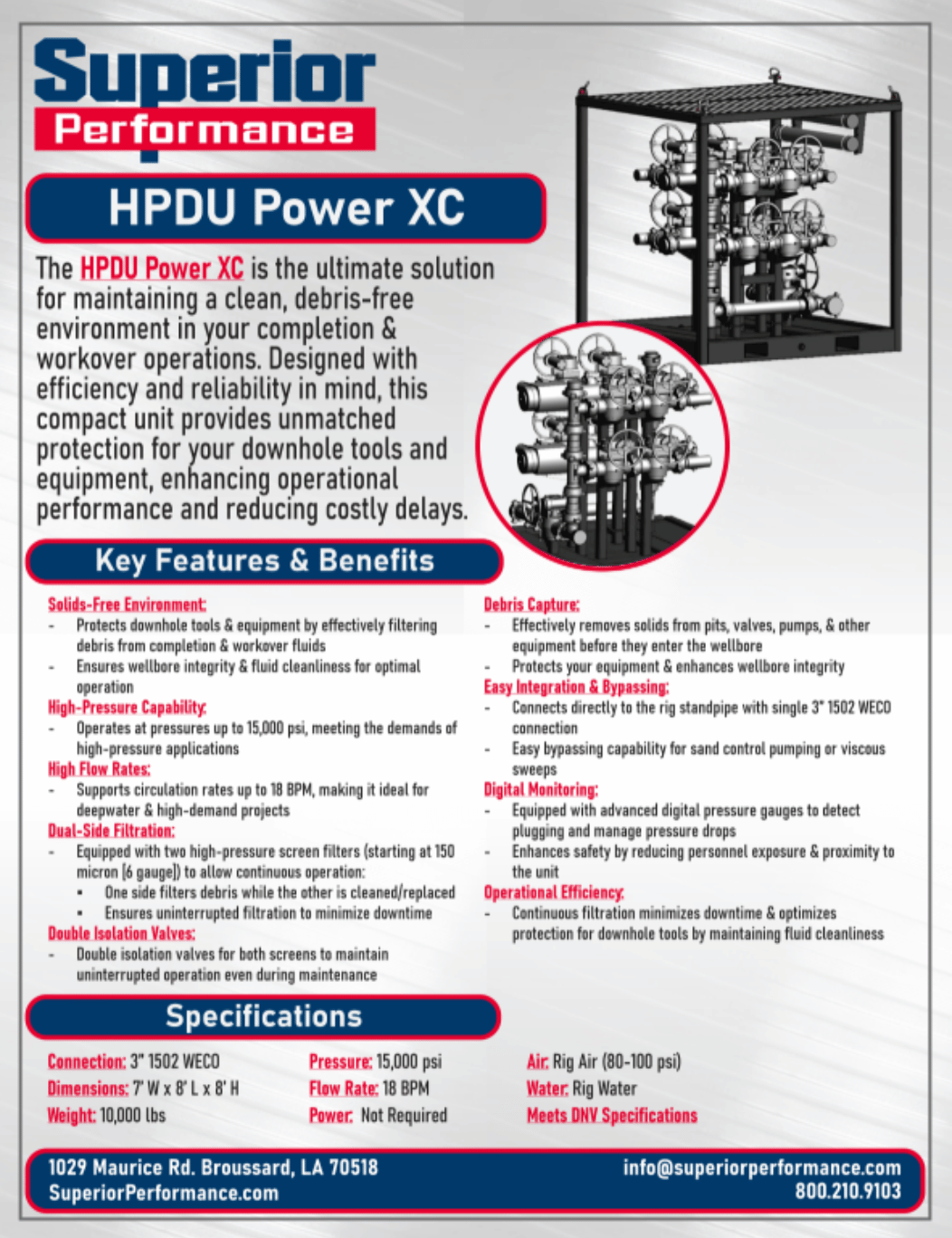

Download Now - Power XC Brochure

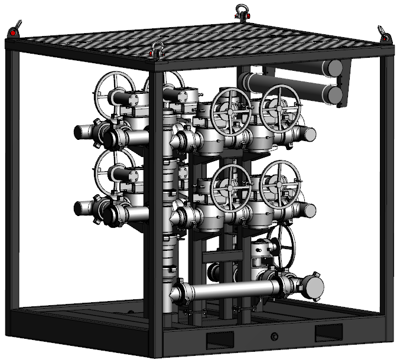

SPI Power XC-HPDU 1



Engineered for Clean, Continuous Performance

Both the HPDU Power X and Power XC provide:

  • 15,000 psi Pressure Rating - Built to perform in high-pressure applications across deepwater and land-based operations.

  • High Flow Rate Support - Capable of handling up to 18 BPM, making them ideal for high-demand circulation projects.

  • Dual-Side Filtration System - Two high-pressure screen filters (starting at 150 microns) allow one side to filter while the other is cleaned—eliminating downtime during screen changes.

  • Digital Monitoring - Equipped with advanced digital pressure gauges to detect plugging and manage pressure drops in real time, reducing personnel exposure and improving safety.

  • Bypass Functionality - Easily bypass for sand control, chemical sweeps, or screen maintenance—keeping operations flexible and flowing.

  • Double Isolation Valves - Double isolation valves for both screens and the bypass system, to maintain uninterrupted operation even during maintenance

Model Comparison

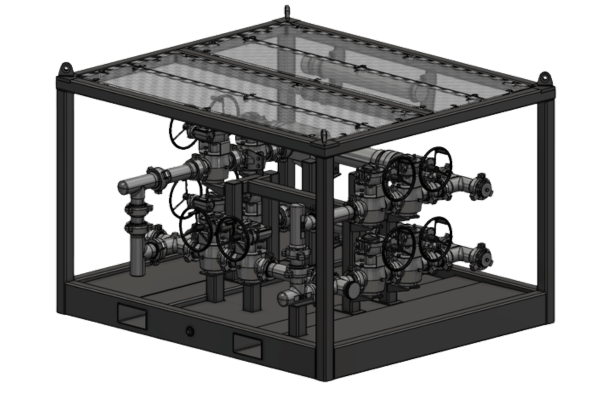

HPDU Power X

  • Dimensions - 8' W x 9' L x 6' H

  • Weight - 9,800 lbs

  • Bypass System - Yes – with double isolation valves

  • Rig-Up Connection - Single 3" 1502 WECO

  • Power - Not Required

  • Air/Water - Rig Air (80-100 psi) / Water Rig Air (80-100 psi) /

  • Certifications -Meets DNV Specifications

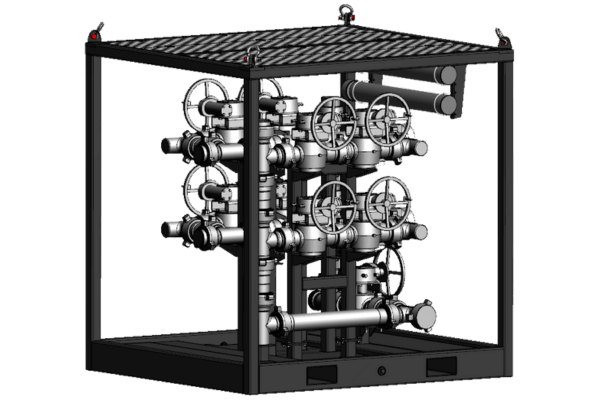

HPDU Power XC

  • Dimensions - 7' W x 8' L x 8' H

  • Weight - 10,000 lbs

  • Bypass System - Yes – with double isolation valves

  • Rig-Up Connection - Single 3" 1502 WECO

  • Power - Not Required

  • Air/Water - Rig Air (80-100 psi) / Water Rig Air (80-100 psi) / Water

  • Certifications - Meets DNV Specifications

Benefits

  • Protects Downhole Tools - Captures solids before they can damage pumps, valves, or tubing strings—ensuring cleaner fluids and longer equipment life.

  • Minimize Downtime - Continuous filtration capability keeps your operation moving, even during filter maintenance.

  • Enhance Safety -Digital gauges reduce the need for personnel to monitor the unit closely in high-pressure zones.

  • Versatile and Compact Options -Choose the Power X for full-feature, rugged operation or the Power XC for a more compact footprint where space is limited.

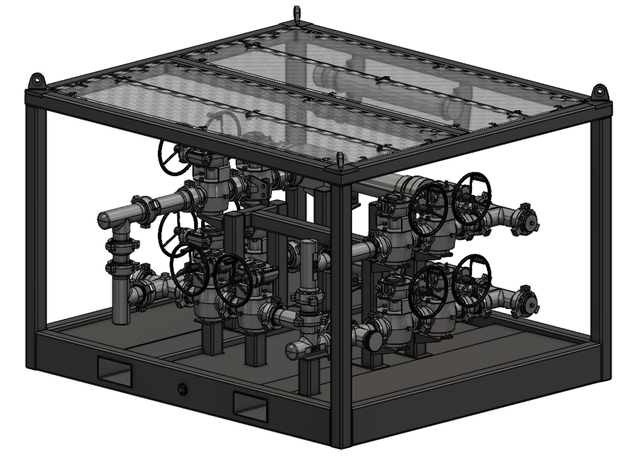

SPI Power X HPDU 1


GET THE TOOL YOU NEED

Let us help you with service and getting you the right power equipment for the job. We go above and beyond and are committed to helping you find the right tool.
